Zaptec Pro Backplate

Please note that the Zaptec Pro Backplate with article number ZM000438 is being replaced by 900-00033 — the product remains unchanged.

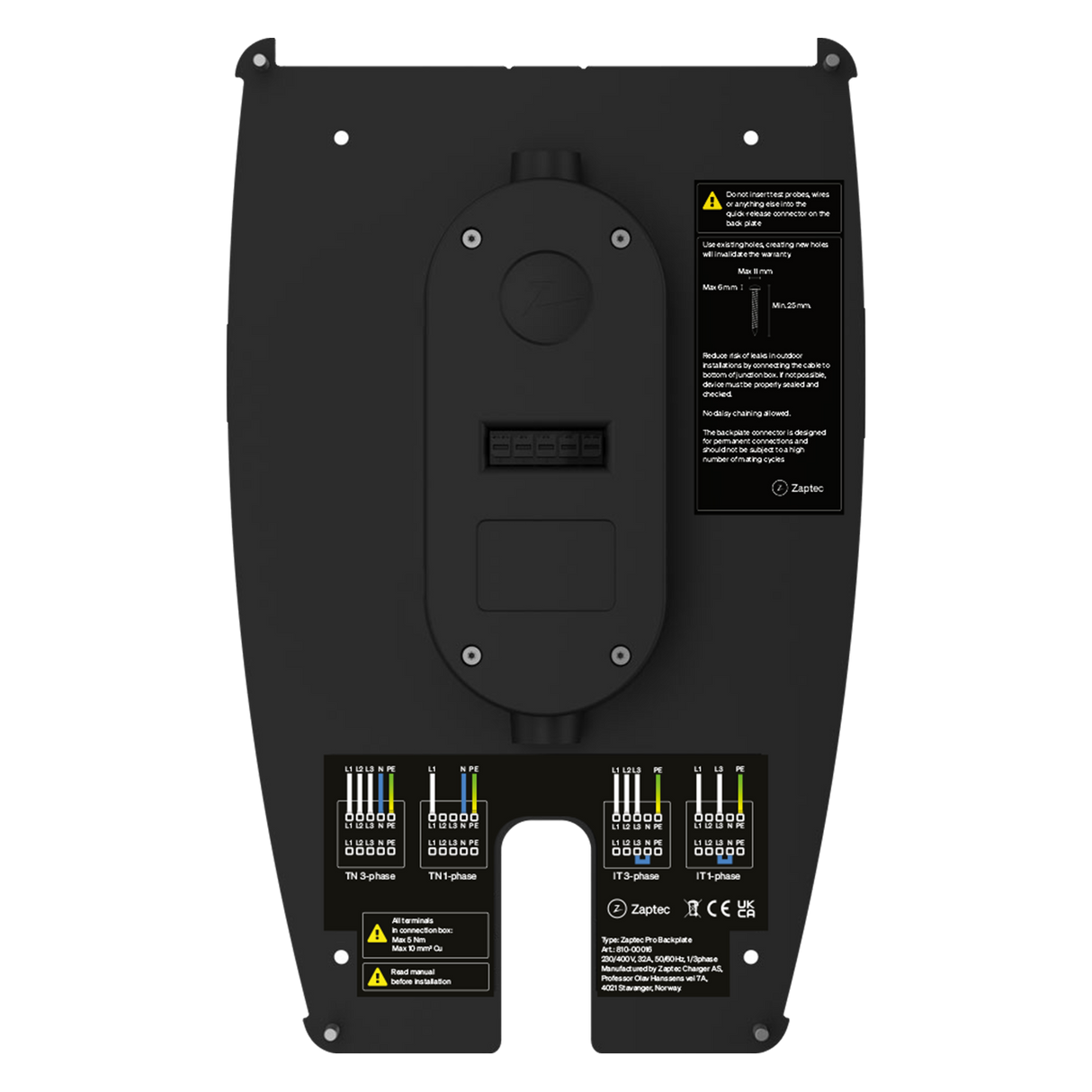

Backplate for Zaptec Pro

The backplate has a cut out on the lower half which makes it possible to install through the wall (hidden wiring).

Colour
Black, RAL9017

Material
Steel

Surface Treatment
Powder-coated

Material Connection Box
ASA+PC

Degree of Protection
UV resistant
UL94-5VA

Cable Entry
20mm
Max 10 mm² cable
Min 2.5 mm² cable

Supplied Cable Seals
Ø 14mm, Ø 8mm and blind plug

Mounting to Wall
4 pcs Ø 5mm hole

View all specifications:
Product sheet
